Frontier Electronics supports the Power, RF, Telecom and Industrial sectors through continuous innovation and product development. Frontier's engineering and manufacturing focus allows us to offer both short lead times and very competitive pricing. Large volume manufacturing, quick turn custom designs, and low volume production runs are some of the features that make Frontier Electronics a full service passive component manufacturing partner.
1111 EIA (2828M) Ultra High Q MLCCs
Frontier's 1111 EIA case size Ultra High-Q MLCCs are now available with capacitance values up to 1,000pF and a voltage rating of 500V! With one of the highest Q ratings and one of the lowest lowest ESR ratings in the industry our M series of MLCCs is sure to meet your needs!
Super High-Q Tunable Inductors
To compliment our Ultra High-Q and High-Q MLCC series, Frontier's proprietary 5SQ series of tunable inductors has the highest Q value in the industry for tunable inductors! The 5SQ series is used in RF circuits when inductance tunability is desired. The Super High-Q value makes the 5SQ ideally suited for use in high frequency circuits and equipment such as wireless LAN, antenna matching in PA circuits, RF filtering circuits, and many other high frequency/RF circuits.

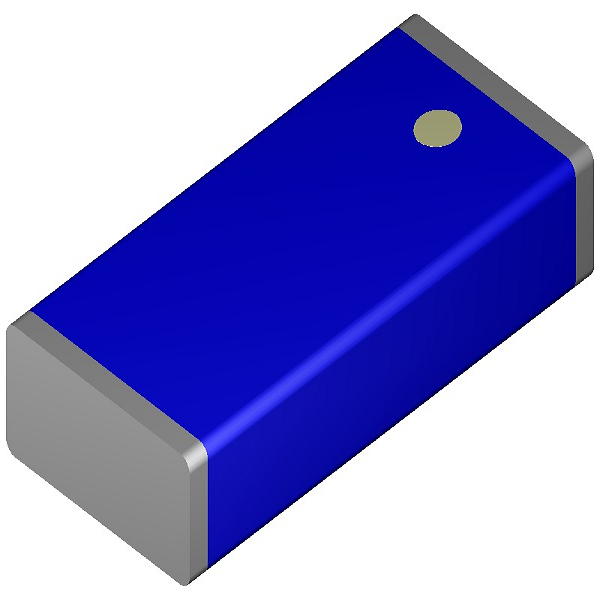

Ultra High-Q Wire Wound Chip Inductors
Frontier's HQ series of wire-wound chip inductors not only exceeds the competitors' Q value but also exceeds the competitors' current rating as well!
EIA case sizes from 0402-1008, inductance range 1.3nH -100nH, maximum current range of 0.64A to 2.1A and Q values as high as 98 (at 500 MHz)!
High Voltage MLCCs
Frontier's High Voltage MLCCs have voltage ratings as high as 3,000 volts.
EIA case sizes from 0201 to 2225, and a capacitance range of 0.01pF to 10µF. Custom designs are available up to 10,000 volts!
SMD Square Air Coils
Frontier has expanded our surface mount (SMD) Square Air Coil series with the addition of 1111 ~ 2929 size coils. For the same inductance value and maximum height, a square coil will have a shorter length than a round coil, the square coil’s C (capacitance) is lower than the C of a round coil and the SRF value for a square coil is higher than the round coil’s. This makes our LSQ Square Coil series ideal for high frequency operation.
100 volt 0201 Ultra High Q MLCCs
Frontier's 0201 EIA case size Ultra High-Q MLCCs are now rated up to 100 volts for capacitance values up to and including 10pF! With one of the highest Q ratings and one of the lowest lowest ESR ratings in the industry our 0201M series of MLCCs is sure to meet your needs!
